ECA Integration and Component Installation

After configuring the network connection between ECA and the ML Module, you need to install and configure the following components to establish data flow for threat hunting capabilities.

Installation Tracking

Monitor your installation progress at any point by running kubectl -n seed-ml get pods, which displays the current status of all components being deployed in the installation process.

Setting Up Database Components

Install Clickhouse

1. Get ECA Kafka Node Hostnames

   Get the ECA Kafka node hostnames that you'll need for configuration.



   info

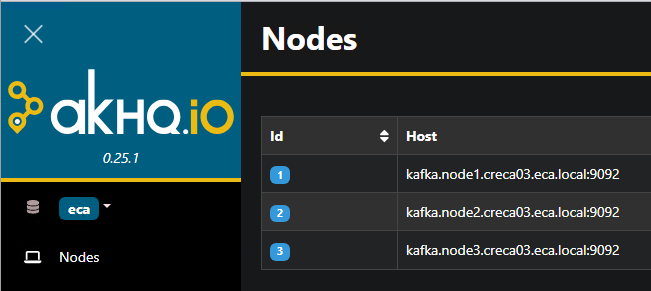

   Retrieve ECA Kafka node hostnames from your ECA environment and note these for use in the configuration file below.

2. Create Configuration File
   Set ClickHouse admin password and create the configuration file with proper hostnames and IPs to the ECA nodes.

   Set the ClickHouse admin password environment variable:

   export CLICKHOUSE_PASS=Clickhouse.Change-me.2025

   Create ClickHouse custom values file for on-premise installation:

   cat << EOF > clickhouse-onprem-values.yaml
   clickhouse:
     clusterName:
     shards: 1
     replicaCount: 1
     auth:
       password: $CLICKHOUSE_PASS
     extraOverrides: |
       <clickhouse>
         <kafka>
           <security_protocol>plaintext</security_protocol>
         </kafka>
       </clickhouse>
     zookeeper:
       enabled: false
     hostAliases:
       - ip: "<eca-node-1-ip>"
         hostnames:
           - "<kafka-node-1-hostname>"
       - ip: "<eca-node-2-ip>"
         hostnames:
           - "<kafka-node-2-hostname>"
       - ip: "<eca-node-3-ip>"
         hostnames:
           - "<kafka-node-3-hostname>"
   EOF
   Required Parameter Replacements

   Replace the placeholder values with your actual ECA node values:

   Placeholder	Description	Example
   <eca-node-1-ip>	IP address of first ECA node	10.152.1.148
   <eca-node-2-ip>	IP address of second ECA node	10.152.1.149
   <eca-node-3-ip>	IP address of third ECA node	10.152.1.150
   <kafka-node-1-hostname>	Hostname of first Kafka node	kafka.node1.cluster.local
   <kafka-node-2-hostname>	Hostname of second Kafka node	kafka.node2.cluster.local
   <kafka-node-3-hostname>	Hostname of third Kafka node	kafka.node3.cluster.local

3. Install ClickHouse
   Install ClickHouse using the custom values file.

   Install ClickHouse using Helm:

   helm upgrade --install clickhouse chart-seed-ml/charts/clickhouse -n seed-ml -f clickhouse-onprem-values.yaml

   Verify that the ClickHouse pod is running:

   kubectl -n seed-ml get pods
   Expected Result

   You should see a pod named clickhouse-0 with status Running.

Install Postgres

1. Set Credentials and Install
   Set PostgreSQL admin password and install using Helm chart.

   Set PostgreSQL admin password environment variable:

   export POSTGRES_ADMIN_PASS=Postgres.Change-me.2025

   Install PostgreSQL Helm chart:

   helm upgrade --install postgres chart-seed-ml/charts/postgres -n seed-ml --create-namespace \
     --set postgresql.auth.postgresPassword=$POSTGRES_ADMIN_PASS \
     --set postgresql.primary.persistence.size=8Gi

2. Export Credentials
   Retrieve and set environment variables for PostgreSQL credentials.

   Retrieve and set POSTGRES_USER environment variable:

   export POSTGRES_USER=$(kubectl get secret seed-ml-user-secret -n seed-ml -o jsonpath="{.data.username}" | base64 -d)

   Retrieve and set POSTGRES_PASS environment variable:

   export POSTGRES_PASS=$(kubectl get secret seed-ml-user-secret -n seed-ml -o jsonpath="{.data.password}" | base64 -d)

   Retrieve and set POSTGRES_SUPERSET_USER environment variable:

   export POSTGRES_SUPERSET_USER=$(kubectl get secret superset-user-secret -n seed-ml -o jsonpath="{.data.username}" | base64 -d)

   Retrieve and set POSTGRES_SUPERSET_PASS environment variable:

   export POSTGRES_SUPERSET_PASS=$(kubectl get secret superset-user-secret -n seed-ml -o jsonpath="{.data.password}" | base64 -d)
   tip

   These environment variables will be used in subsequent configuration files, so ensure they are properly exported.

Configuring Core ML Components

Install SeedML

1. Export Environment Variables
   Export environment variables needed by AWS.

   Set the AWS EKS cluster name:

   export AWS_EKS_CLUSTER="seed-qa-01"

   Set the default AWS region:

   export AWS_DEFAULT_REGION="ca-central-1"

   Set the AWS region (redundant with AWS_DEFAULT_REGION but often included for broad compatibility):

   export AWS_REGION="ca-central-1"

   Set the AWS ECR target repository URL:

   export AWS_ECR_TARGET="285688719016.dkr.ecr.ca-central-1.amazonaws.com"

   Set the AWS secret access key:

   export AWS_SECRET_ACCESS_KEY="<your-secret-access-key>"

   Set the AWS access key ID:

   export AWS_ACCESS_KEY_ID="<your-access-key-id>"
   Fixed AWS Configuration Values

   The following AWS configuration values are fixed and should be entered exactly as shown. Only the AWS credentials (secret access key and access key ID) need to be obtained separately.

   Parameter	Description	Value
   AWS_EKS_CLUSTER	EKS cluster name (fixed)	seed-qa-01
   AWS_DEFAULT_REGION	AWS region (fixed)	ca-central-1
   AWS_ECR_TARGET	ECR repository URL (fixed)	285688719016.dkr.ecr.ca-central-1.amazonaws.com
   AWS_SECRET_ACCESS_KEY	Your AWS secret access key	(obtain from AWS IAM)
   AWS_ACCESS_KEY_ID	Your AWS access key ID	(obtain from AWS IAM)

2. Add AWS Authentication for K3s
   Configure AWS CLI and create ECR authentication for K3s.

   Download the AWS CLI v2 installer:

   curl "https://awscli.amazonaws.com/awscli-exe-linux-x86_64.zip" -o "awscliv2.zip"

   Unzip the AWS CLI installer:

   unzip awscliv2.zip

   Install the AWS CLI:

   sudo ./aws/install

   Get an ECR login password:

   ECR_PASSWORD=$(aws ecr get-login-password --region ${AWS_REGION})

   Create a Kubernetes Docker registry secret for ECR:

   kubectl create secret docker-registry supernaregcred \
     --namespace seed-ml \
     --docker-server="${AWS_ECR_TARGET}" \
     --docker-username="AWS" \
     --docker-password="${ECR_PASSWORD}"

3. Create Configuration File
   Create seed-ml custom values file for on-premise installation.

   cat << EOF > seedml-onprem-values.yaml
   fqdn: dashboard.ml
   default:
     image:
       registry: $AWS_ECR_TARGET
       tag: $RELEASE
       pullPolicy: IfNotPresent
       pullSecrets:
         - name: supernaregcred
   ingress:
     exposeDevRoutes: false
   ml-data-exfiltration:
     enabled: true
     image:
       name: seed-ml-public/ml-data-exfiltration
     config: |
       app:
         swagger:
           server.url: http://127.0.0.1:58080
     port: 5000
     extraEnv:
       - name: ML_DB_URL
         value: clickhousedb://admin:$CLICKHOUSE_PASS@clickhouse/seed_ml?send_receive_timeout=300
       - name: ML_SHARED_VOLUME
         value: /mnt/ml-data
   service-inventory:
     enabled: true
     image:
       name: seed-ml-public/service-inventory
     config: |
       spring:
         datasource:
           username: $POSTGRES_USER
           password: $POSTGRES_PASS
       app:
         swagger:
           server.url: http://127.0.0.1:58080
       logging:
         level:
           io.superna: INFO
     extraEnv:
       - name: DB_JDBC_URL
         value: jdbc:postgresql://postgres-postgresql/seed_ml
       - name: ML_DB_URL
         value: clickhousedb://admin:$CLICKHOUSE_PASS@clickhouse/seed_ml?send_receive_timeout=300
   service-pipelines:
     enabled: true
     image:
       name: seed-ml-public/service-pipelines
     config: |
       spring:
         flyway:
           locations: ["classpath:db/migration/local"]
           clusterName: ""
           placeholders:
             kafka-bootstrap-servers: <eca-node-1-ip>:9092,<eca-node-2-ip>:9092,<eca-node-3-ip>:9092
         kafka:
           bootstrap-servers: <eca-node-1-ip>:9092,<eca-node-2-ip>:9092,<eca-node-3-ip>:9092
           streams:
             properties:
               security.protocol: PLAINTEXT
       app:
         swagger:
           server.url: http://127.0.0.1:58080
         services:
           ml-data-exfiltration.url: http://seedml-ml-data-exfiltration:5000
           inventory.url: http://seedml-service-inventory:8080
       logging:
         level:
           io.superna: INFO
     extraEnv:
       - name: DB_JDBC_URL
         value: jdbc:clickhouse://admin:$CLICKHOUSE_PASS@clickhouse/seed_ml?send_receive_timeout=300
       - name: KAFKA_USER
         value: $KAFKA_USER
       - name: KAFKA_PASS
         value: $KAFKA_PASS
     hosts:
       - ip: "<eca-node-1-ip>"
         hostnames:
           - "<kafka-node-1-hostname>"
       - ip: "<eca-node-2-ip>"
         hostnames:
           - "<kafka-node-2-hostname>"
       - ip: "<eca-node-3-ip>"
         hostnames:
           - "<kafka-node-3-hostname>"
   EOF
   Required Parameter Replacements

   Replace the placeholder values with your actual configuration:

   Placeholder	Description	Example
   <ml-server-ip>	ML server IP address	10.152.20.90
   <port>	ML server port (fixed)	31443
   <eca-node-1-ip>	IP address of first ECA node	10.152.1.148
   <eca-node-2-ip>	IP address of second ECA node	10.152.1.149
   <eca-node-3-ip>	IP address of third ECA node	10.152.1.150
   <kafka-node-1-hostname>	Hostname of first Kafka node	kafka.node1.cluster.local
   <kafka-node-2-hostname>	Hostname of second Kafka node	kafka.node2.cluster.local
   <kafka-node-3-hostname>	Hostname of third Kafka node	kafka.node3.cluster.local

4. Install SeedML
   Install seed-ml services using the custom values file.

   helm upgrade --install seedml chart-seed-ml/charts/seedml -n seed-ml --create-namespace -f seedml-onprem-values.yaml

5. Update Service Inventory Prebuilt ML Models
   Before installing seed-ml services, you need to update the docker image registry and tag for the prebuilt ML models in the inventory service.

   1. Expose Service Inventory API
      Port-forward the service inventory to access its API locally.

      kubectl -n seed-ml port-forward svc/seedml-service-inventory 58080:8080
      API Access

      The service API will be accessible at: http://127.0.0.1:58080/swagger-ui/index.html#

   2. Access the Swagger UI
      Open your browser and navigate to the Swagger UI URL to access the inventory endpoints.

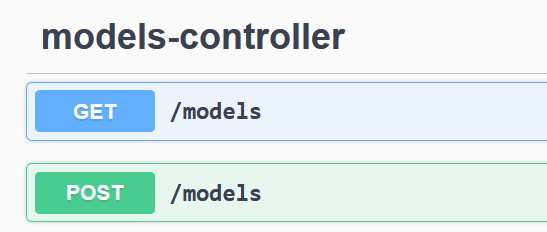

      You'll use these two endpoints:

      • GET /models - Retrieve current model configurations
      • POST /models - Update model configurations



   3. Update Each ML Model
      You need to update 4 models: data-exfil-rwmr, data-exfil-rwmw, data-exfil-ml1, and data-exfil-ml2.

      For each model, follow these steps:



   4. Get Current Configuration

      • Execute the GET /models endpoint

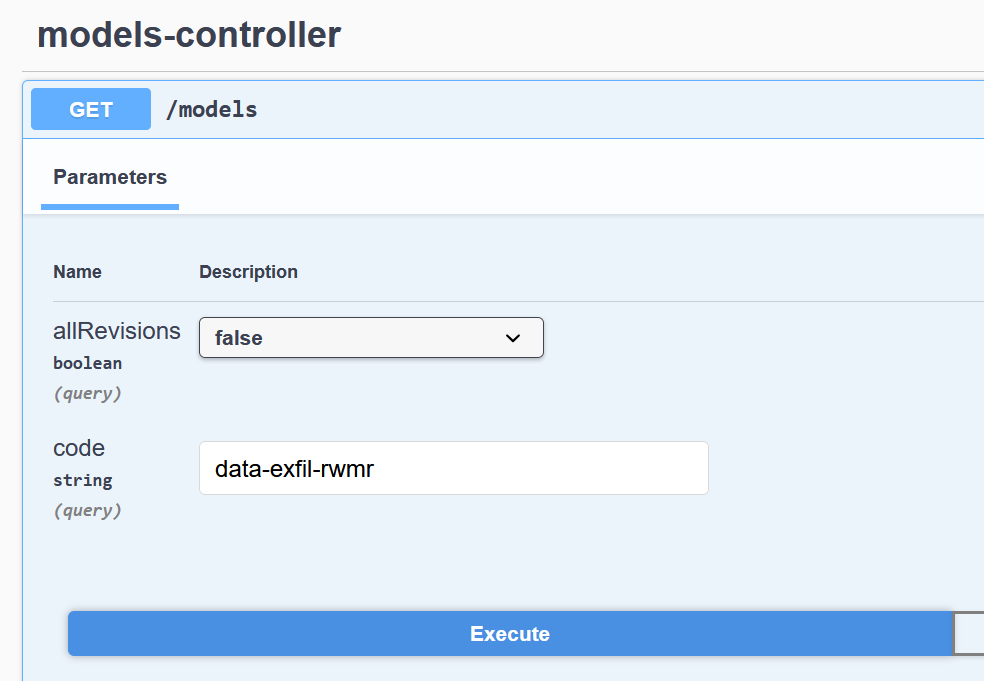

      • Enter the model name in the code field (e.g., data-exfil-rwmr)

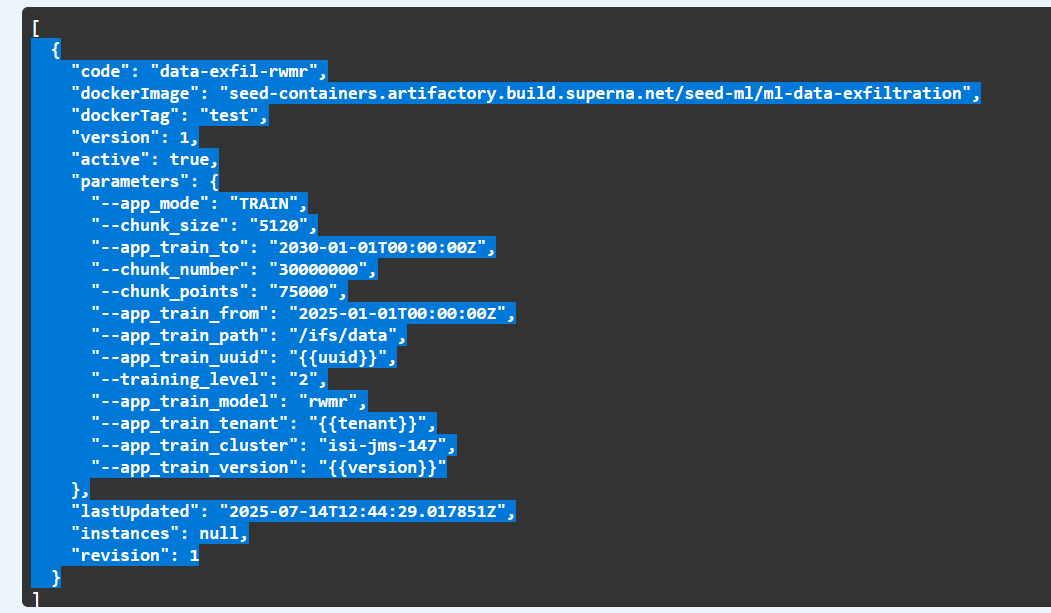

      • Copy the response payload for the specific model (without the array brackets [,])



   5. Update Docker Configuration

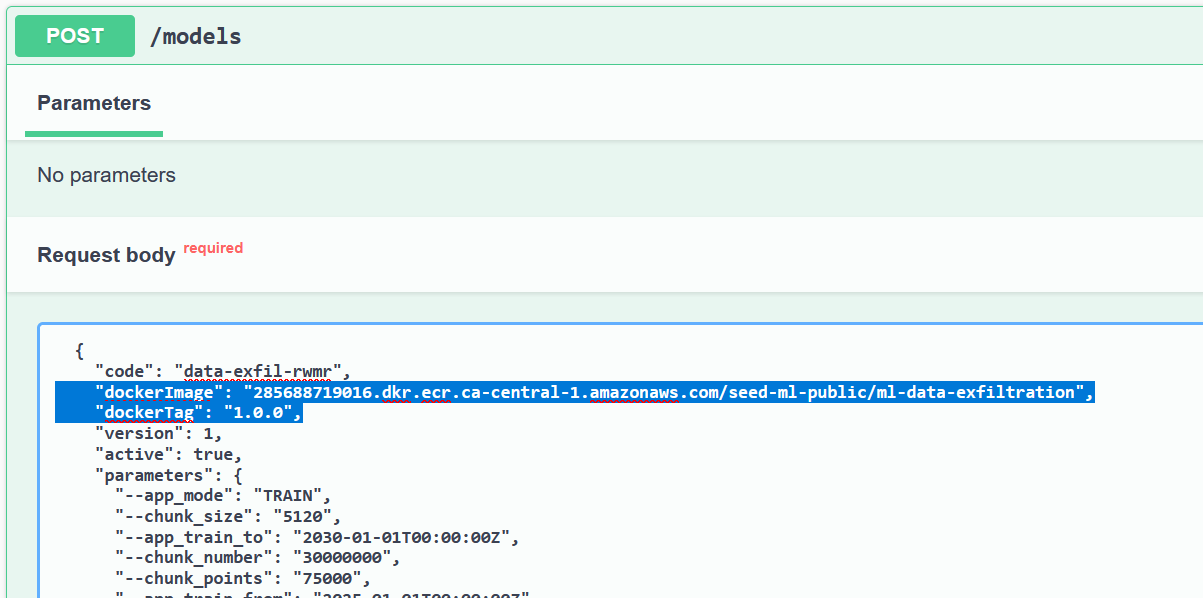

      • Paste the copied JSON into the POST /models input area

      • Update these two attributes:

        • dockerImage: Change from seed-containers.artifactory.build.superna.net/seed-ml/ml-data-exfiltration to 285688719016.dkr.ecr.ca-central-1.amazonaws.com/seed-ml-public/ml-data-exfiltration
        • dockerTag: Change from test to 1.0.0

      • Click the Execute button to save changes

   6. Verify Updates

      • Run the GET /models endpoint again

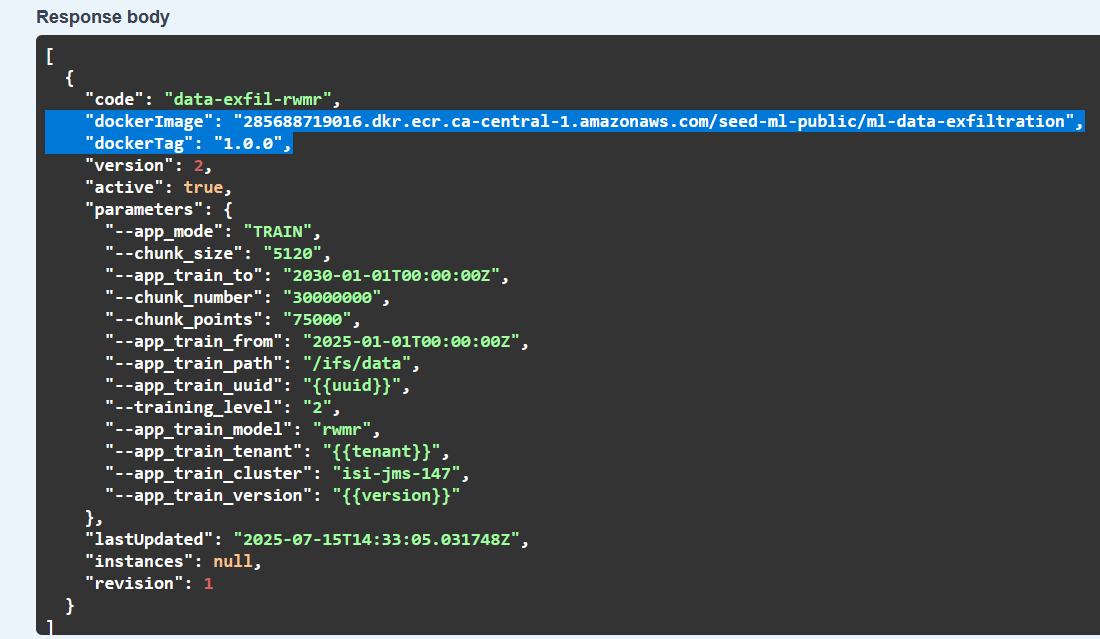

      • Confirm the new values for dockerImage and dockerTag are present



      Model Update Required

      Repeat this process for all 4 models:

      • data-exfil-rwmr
      • data-exfil-rwmw
      • data-exfil-ml1
      • data-exfil-ml2

Configuring Advanced Components

Install SeedML Backend

The API service includes basic HTTP security, which is protected by a predefined username and password.

Configuration Prerequisites

The following steps guide you through gathering critical configuration values before creating the configuration file. Collect all these values before proceeding to the configuration file creation.

1. Prepare Configuration Values

   1. ML Machine Address

      Identify the ML machine's IP address to use in the FQDN parameter within both the service-ml-core and api-ml sections of the configuration file.

   2. ML Machine Port

      Determine the port for the ML machine to use in the FQDN parameter (format: <IP_ADDRESS>:31443).

   3. Eyeglass URL

      Identify your Eyeglass server's full address (including https://) for the EYEGLASS_URL parameter.

   4. Authentication Token

      Create a token for ML integration:

      • Navigate to Eyeglass Menu → Integrations → API Tokens
      • Generate a new token and save it for the EYEGLASS_TOKEN parameter
      info

      For detailed instructions on creating API tokens, see Authenticating Remote Services.

   5. Eyeglass Public Key

      Obtain the Eyeglass public key for the EYEGLASS_PUBLIC_KEY parameter:

      cat /opt/superna/eca/data/common/.secure/rsa/isilon.pub
      tip

      Run this command on any ECA node and save the entire output.

   6. Kafka Connection Details

      Identify all ECA node IP addresses and their corresponding Kafka hostnames for the KAFKA_SERVERS parameter and hosts section (port stays as 9092).

2. Create Configuration File

   Create the SeedML Backend configuration file:

    cat << EOF > seedmlback-onprem-values.yaml
    fqdn: dashboard.ml
    environment:
      kind: dev
      name: onprem
    default:
      image:
        registry: $AWS_ECR_TARGET
        tag: $RELEASE
        pullPolicy: IfNotPresent
        pullSecrets:
          - name: supernaregcred
    ingress:
      exposeDevRoutes: false
    service-ml-core:
      enabled: true
      image:
        name: seed-ml-public/service-ml-core
      config: |
        app:
          fqdn: "<ML_MODULE_ADDRESS>:31443"
          swagger:
            server.url: http://127.0.0.1:58080
          eyeglass:
            enabled: true
            url: https://<EYEGLASS_ADDRESS>
            #heartbeat-delay: 60 # heartbeat delay in seconds
            #node-name: ml-cluster
            #esaid: 1
            token: <EYEGLASS_TOKEN>
            public-key: <EYEGLASS_PUBLIC_KEY>
          ml-training:
            enabled: true # ml-training deployment enabled or not
            delta-time:
              value: 48 # delta value for adjusting training time (in the example below will train with data till 2 days ago)
              unit: HOURS # ChronoUnit format: MINUTES, HOURS, DAYS
            # zones where training will collect data. Combination of <cron>:<cluster_name>:<path>:<models (empty to apply all)>
            zones:
              - "0 0 0 * * *:isi-mock-127:/ifs/data/tests/AccessZoneA:data-exfil-rwmr"
              - "0 0 1 * * *:isi-mock-127:/ifs/data/tests/AccessZoneA:data-exfil-rwmw"
              - "0 0 2 * * *:isi-mock-127:/ifs/data/tests/AccessZoneA:data-exfil-ml1"
              - "0 0 3 * * *:isi-mock-127:/ifs/data/tests/AccessZoneA:data-exfil-ml2"
        extraEnv:
        - name: DB_JDBC_URL
          value: jdbc:clickhouse://admin:$CLICKHOUSE_PASS@clickhouse/seed_ml
        - name: KAFKA_SERVERS
          value: <ECA_NODE1_IP>:9092,<ECA_NODE2_IP>:9092,<ECA_NODE3_IP>:9092
        hosts:
          - ip: "<ECA_NODE1_IP>"
            hostnames:
              - "kafka.node1.jmseca1.eca.local"
          - ip: "<ECA_NODE2_IP>"
            hostnames:
              - "kafka.node2.jmseca1.eca.local"
          - ip: "<ECA_NODE3_IP>"
            hostnames:
              - "<KAFKA_NODE3_HOST>"
    api-ml:
      image:
        name: seed-ml-public/api-ml
      config: |
        app:
          fqdn: "<ML_MODULE_ADDRESS>:31443"
          services:
            core.url: http://seedmlback-service-ml-core:8080
          auth:
            # Default username. Define a new one if required
            #name: mladmin
            # Default password. To generate a new one for example: htpasswd -bnBC 12 "" my_secret_password
            #password: "{bcrypt}<generated password>"
    ui-ml:
      image:
        name: seed-ml-public/ui-ml
    EOF
   Required Parameter Replacements

   Replace these placeholders with your actual values:

   Placeholder	Description	Example
   <ML_MODULE_ADDRESS>	IP address of ML module server	xxx.xxx.xxx.10
   <ML_MODULE_PORT>	Port for ML module server (fixed)	31443
   <EYEGLASS_ADDRESS>	IP address of Eyeglass server	xxx.xxx.xxx.20
   <EYEGLASS_TOKEN>	API token from Eyeglass	eyJhbGciOiJIUzI1...
   <EYEGLASS_PUBLIC_KEY>	RSA public key from ECA node	ssh-rsa AAAAB3NzaC1...
   <CLUSTER_NAME>	Isilon cluster name	cluster1
   <SUPERVISED_PATH_1>	Directory path to supervise	/ifs/data/tests/folder1
   <ECA_NODE1_IP>	IP address of first ECA node	xxx.xxx.xxx.30
   <ECA_NODE2_IP>	IP address of second ECA node	xxx.xxx.xxx.31
   <ECA_NODE3_IP>	IP address of third ECA node	xxx.xxx.xxx.32
   <KAFKA_NODE1_HOST>	Hostname of first Kafka node	kafka-node1
   <KAFKA_NODE2_HOST>	Hostname of second Kafka node	kafka-node2
   <KAFKA_NODE3_HOST>	Hostname of third Kafka node	kafka-node3

3. Install SeedML Backend

   Install the SeedML backend with your configuration:

   helm upgrade --install seedmlback chart-seed-ml/charts/seedmlback -n seed-ml --create-namespace -f seedmlback-onprem-values.yaml

Install Superset Dashboard

Superset provides the visualization dashboard for your threat hunting data.

1. Set Environment Variables

   Set the required secret key and admin password for Superset:

   export SUPERSET_ADMIN_USER_PASS=Change-me-2024

   export SUPERSET_SECRET_KEY=Change-it-2024

2. Create Configuration File

   Create the Superset configuration file:

    cat << EOF > superset-onprem-values.yaml
    superset:
      extraSecretEnv:
        SUPERSET_SECRET_KEY: $SUPERSET_SECRET_KEY
      init:
        adminUser:
          password: $SUPERSET_ADMIN_USER_PASS
      postgresql:
        auth:
          username: $POSTGRES_SUPERSET_USER
          password: $POSTGRES_SUPERSET_PASS
      supersetNode:
        connections:
          db_host: postgres-postgresql
          db_pass: $POSTGRES_SUPERSET_PASS
      ingress:
        enabled: true
        ingressClassName: haproxy-superset
    EOF

3. Install Superset

   Deploy Superset using Helm:

   helm upgrade --install superset chart-seed-ml/charts/superset -n seed-ml --create-namespace -f superset-onprem-values.yaml

Verifying the Installation

Verify Eyeglass Integration

1. Access Eyeglass Interface

   Open the Eyeglass web interface in your browser.

2. Navigate to Services

   Go to Settings → Services in the main navigation menu.



3. Verify ML Cluster

   Expected Result

   Confirm the presence of ml-cluster in the services list.

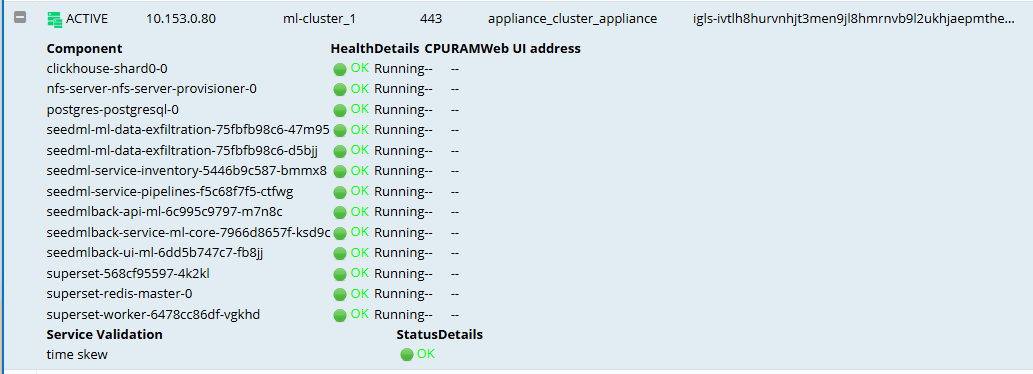

4. Check Component Status

   tip

   All ML module components should show a green icon indicating healthy status.

Dashboard Configuration

Import Superset Dashboards

Several dashboards have been prepared that will allow you to analyze the different available data more effectively. To manually import these dashboards, follow the procedure below:

1. Access Superset Interface

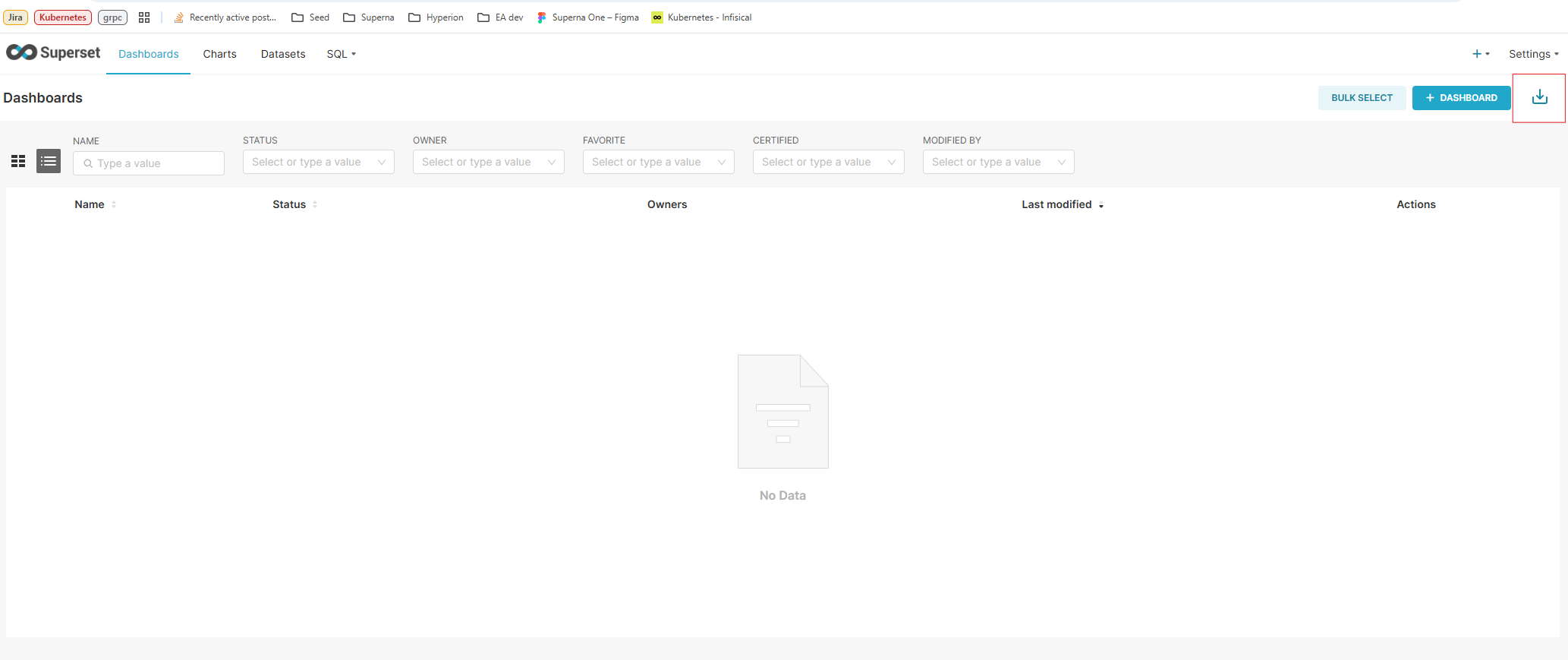

   Upon first access, you will find the dashboards empty. Click on the icon in the upper right corner to import the dashboard.



2. Select Dashboard Files

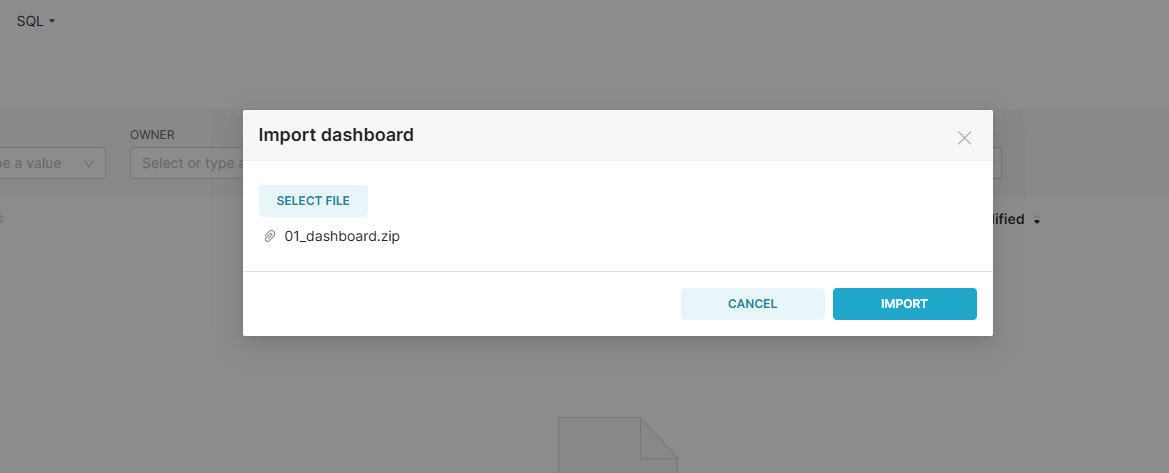

   Select the dashboard you wish to import. These are located at the following path: seed-ml/charts/superset/resources/*.zip.



   Dashboard File Location

   The dashboard files are located in the seed-ml/charts/superset/resources/ directory and have a .zip extension.

3. Provide Database Credentials
   You may be prompted for the password used in the ClickHouse or Postgres database. Provide it when necessary.

   Password Reference

   Use the passwords you set earlier: $CLICKHOUSE_PASS for ClickHouse and $POSTGRES_ADMIN_PASS for Postgres.

4. Complete Import Process
   Once these steps are completed, the dashboard will have been imported successfully.

5. Update ML_Model_Instances Dataset
   Update the ML_Model_Instances dataset. This step ensures that the dataset correctly references the ml-data-exfiltration service using its proper IP address and port.

   Dataset Update Required

   This step is mandatory for proper dashboard functionality. The dataset must reference the correct IP address and port of the ml-data-exfiltration service.

   1. Locate the ML_Model_Instances Dataset
      Navigate to the dataset configuration within the application's interface.

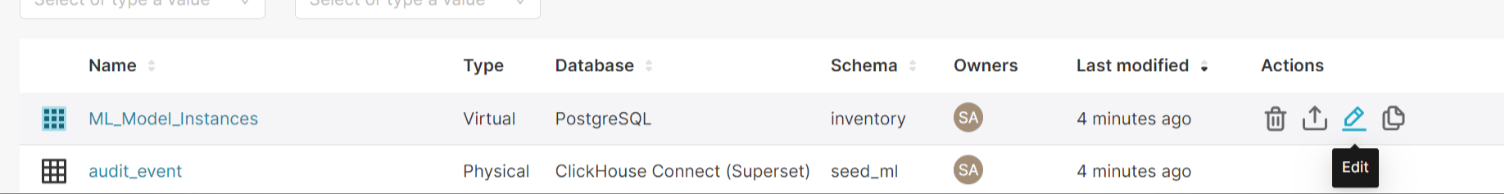

      Find and select the dataset named ML_Model_Instances.



   2. Edit Connection Details
      Within the ML_Model_Instances dataset configuration, locate the connection or data source settings.

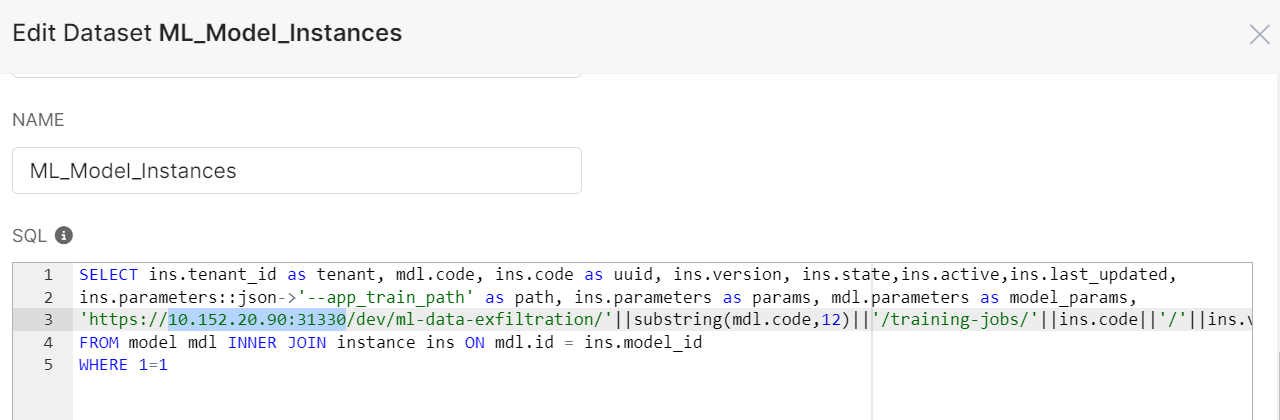

      Update the IP address to the correct IP of your ml-data-exfiltration service.

      Update the port to the correct port exposed by your ml-data-exfiltration service - https://10.152.20.90:31330/prod/ml-data-exfiltration/.



      Service Configuration

      The IP address and port should match the configuration from your ml-data-exfiltration service deployment.

6. Clean Up Temporary Files
   In production environments, remove temporal files created (add more if needed).

   rm *-onprem-values.yaml
   Production Environment

   This cleanup step is recommended for production environments to maintain security and reduce clutter.
